SLZ 300E

SEIGER cycle lathe: The smallest lathe for big tasks from Seiger

Find out more

SEIGER SLZ 300E Drehmschine

SLZ 300E

SEIGER cycle lathe: The smallest lathe for big tasks from Seiger

back

Information

Send inquiry Download data sheet

General information

  • Available with CNC or cycle control from Siemens or Heidenhain
  • Safety clutch in the Z-axis
  • Torsion-resistant bed made of high-quality cast iron with hardened precisely ground slideways and glass scale on the X-axis
  • The control panel can be moved and pivoted freely
  • High degree of precision and rigidity of spindles thanks to precise spindle bearing, spindle bore Ø 40 mm as standard, Ø up to 55 mm as an option

Overview of features

Good machine access and operation
Good machine access and operation
Direct position measurement on the X-axis
Direct position measurement on the X-axis
Stainless steel paneling in the permanent cutting zone
Stainless steel paneling in the permanent cutting zone

Photos

Optional: Tailstock side closed, with hinged door for tailstock operation, towing device on the support for improved tightness of the complete machine

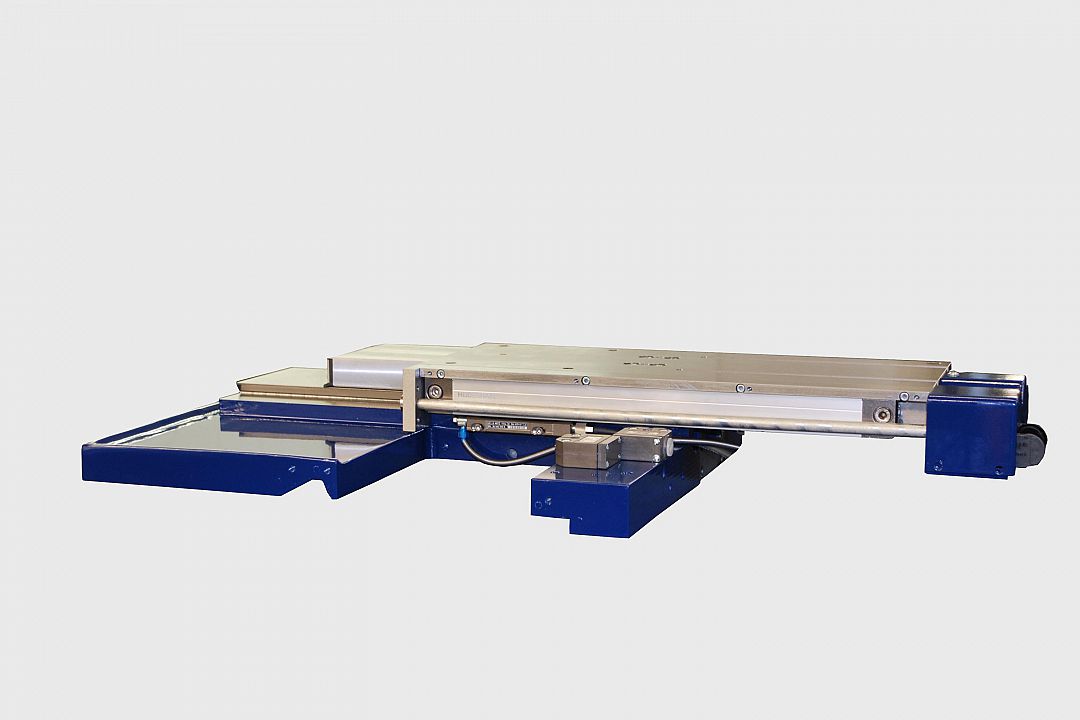

Features of the support: sturdy support with continuous hardened cross slide, direct position measurement using the glass scale and sealing air system for long-term precision, wear-resistant polymer coating in the slideway
Disk turret with stationary and driven tools
Hand lever quick-action chuck for draw-in and push-out collet chucks as an option
Hand lever quick-action chuck for draw-in and push-out collet chucks as an option
Different tool systems manually operated and automatically as a revolver.

Optional: Tailstock side closed, with hinged door for tailstock operation, towing device on the support for improved tightness of the complete machine

Features of the support: sturdy support with continuous hardened cross slide, direct position measurement using the glass scale and sealing air system for long-term precision, wear-resistant polymer coating in the slideway

Disk turret with stationary and driven tools

Hand lever quick-action chuck for draw-in and push-out collet chucks as an option

Hand lever quick-action chuck for draw-in and push-out collet chucks as an option

Different tool systems manually operated and automatically as a revolver.

Specifications and performance

Specifications

SLZ 300E Unit Value
Swing over bed mm 300
Swing over cross slide mm 150
Bed width mm 240
Spindle head in accordance with DIN 55027 Size 5
Spindle bore Ø mm 40 / 55 (Option)
Spindle Ø in the front bearing mm 70 / 90 (Option)
Tailstock quill Ø mm 50
Tailstock stroke mm 125
Tailstock Morse taper MK 3
Center distance mm 750



Performance

SLZ 300E Unit Value
Main drive KW 11,5
Speed range 1/min 1 – 4.500

Dimensions
Length mm 2.000
Width mm 1.800
Height mm 1.850
