SLZ 1000E

SEIGER cycle lathe: Precision and performance for demanding users for the most sturdy technology in its class

Find out more

SEIGER SLZ 1000E Drehmaschine

SLZ 1000E

SEIGER cycle lathe: Precision and performance for demanding users for the most sturdy technology in its class

back

Information

Send inquiry Download data sheet

General information

  • Available with CNC or cycle control from Siemens or Heidenhain
  • High degree of precision and rigidity of spindles
  • Thermal separation through automatically switching gearbox, 46 kW main drive
  • Spindle bore Ø 130 mm as standard, Ø up to 530 mm as an option
  • Cross slide guides hardened and ground with telescopic cover
  • Glass scale on the X-axis with sealing air system
  • Torsion-resistant box-type bed with double prism guide, made of high-quality cast iron with hardened, precision-ground slideways
  • 2 chip conveyors for better discharge as an option
  • Additional guide at the front to reinforce the apron
  • Part paneling or full paneling can be manufactured
  • Z-axis drive through rack and pinion drive and direct position measurement from center distance 5,000 mm

Overview of features

Box-type bed design 750 mm bed width and support guide at the front
Box-type bed design 750 mm bed width and support guide at the front
Headstock 3 bearing points with radial and axial bearings
Headstock 3 bearing points with radial and axial bearings
Optimized paneling concept for large chip volumes
Optimized paneling concept for large chip volumes

Photos

Z-axis drive via ball screw with driven nut.
Sturdy bed slide with turret set up in front of the turning center and boring bar clamping support behind it as special accessories.
Complete paneling closed all the way round, telescopic doors at the front on the operator side.
Different rest designs are offered as an option.
From center distance 5,000 mm rack and pinion drive with gearbox.
Solid tailstock with quill 160 mm, here with the option hydraulic tailstock incl. bed clamping and option electric movement.

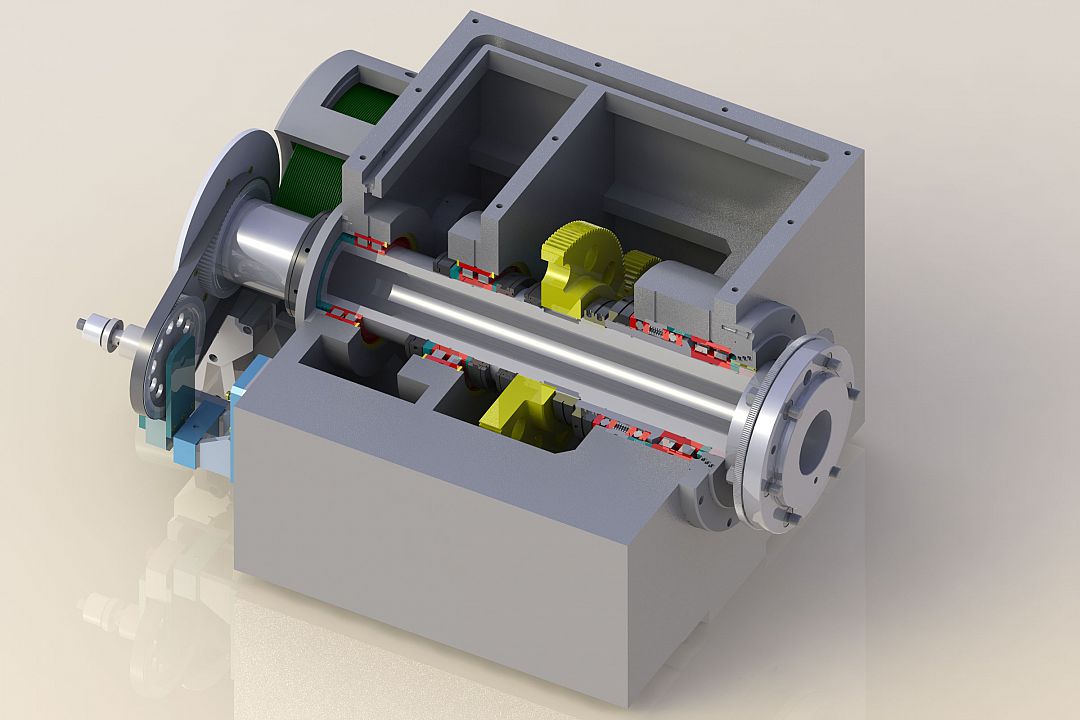

Solid headstock housing with fixed toothed wheel gear running in oil bath. Thermal separation between bearing and automatically switching gearbox Main spindle mounted on bearings in 3 positions. Different bores as an option.

Z-axis drive via ball screw with driven nut.

Sturdy bed slide with turret set up in front of the turning center and boring bar clamping support behind it as special accessories.

Complete paneling closed all the way round, telescopic doors at the front on the operator side.

Different rest designs are offered as an option.

From center distance 5,000 mm rack and pinion drive with gearbox.

Solid tailstock with quill 160 mm, here with the option hydraulic tailstock incl. bed clamping and option electric movement.

Solid headstock housing with fixed toothed wheel gear running in oil bath. Thermal separation between bearing and automatically switching gearbox Main spindle mounted on bearings in 3 positions. Different bores as an option.

Specifications and performance

Specifications

SLZ 1000E Unit Value
Swing over bed mm 1.010
Swing over cross slide mm 650
Bed width mm 750
Spindle head in accordance with DIN 55027 Size 15
Spindle bore Ø mm 130 / 530 (Option)
Spindle Ø in the front bearing mm 220 / 670 (Option)
Tailstock quill Ø mm 160
Tailstock stroke mm 315
Tailstock Morse taper MK 6
Center distance mm 1.000 – 20.000

Performance

SLZ 1000E Unit Value
Main drive KW 46
Speed range 1 / min 1 – 900

Dimensions
Length mm 3.800 + Center distance
Width mm 3.300
Height mm 2.550
