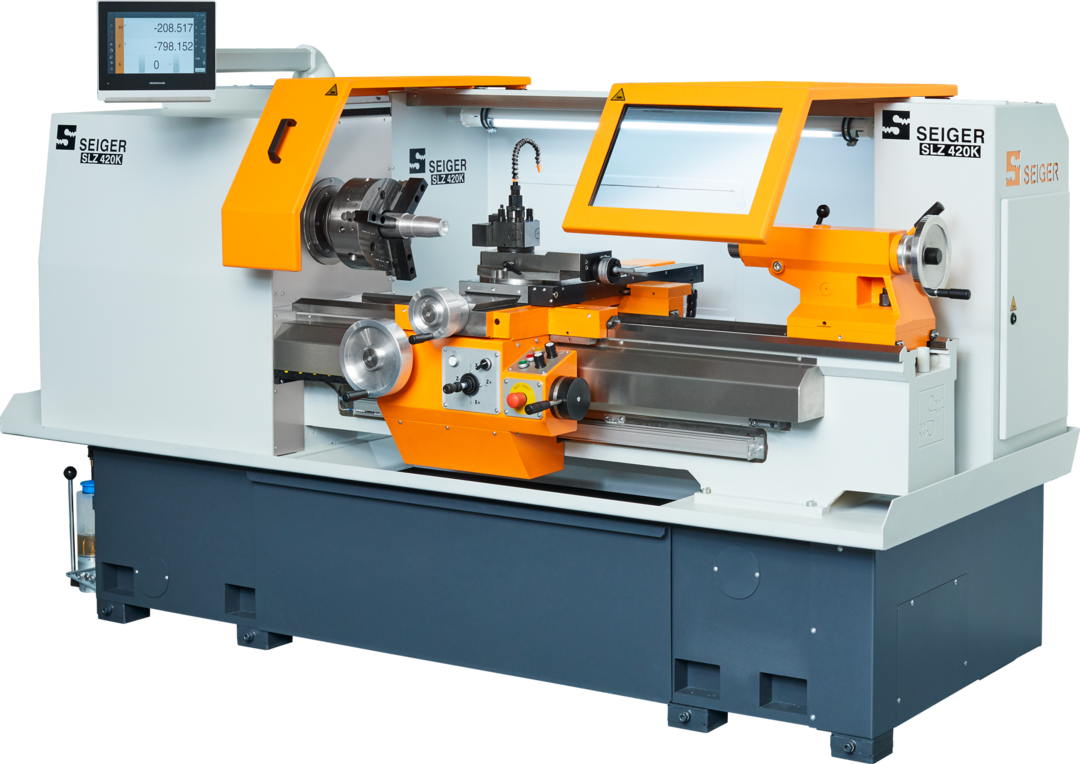

SLZ 420K / SLZ 420SK

The new dimension of the conventional lathe: Manual handling with a touch of digital support

General information


  • Torsion-resistant bed made of high-quality cast iron with hardened precisely ground slideways and glass scale on the X-axis. Bed width 350 mm
  • High degree of precision and rigidity of spindles thanks to precise spindle bearing, spindle bore Ø 80 mm as standard, Ø up to 130 mm as an option
  • Mechanical handwheels
  • Linear scale (from Heidenhain) in the X-axis and Z-axis(standard)
  • Subframes as a hybrid structure of high-strength, cement-bound mineral composite
  • Digital display Heidenhain Positip 8016
  • Free choice of thread pitches
  • V-constant and controllable feed rates via potentiometer
  • Rapid motion function in both axes

Overview of features


Optional 20 kW main drive
Optional 20 kW main drive
350 mm bed width
350 mm bed width
Spindle bore 80 mm as standard, 93 mm as an option
Spindle bore 80 mm as standard, 93 mm as an option

Photos

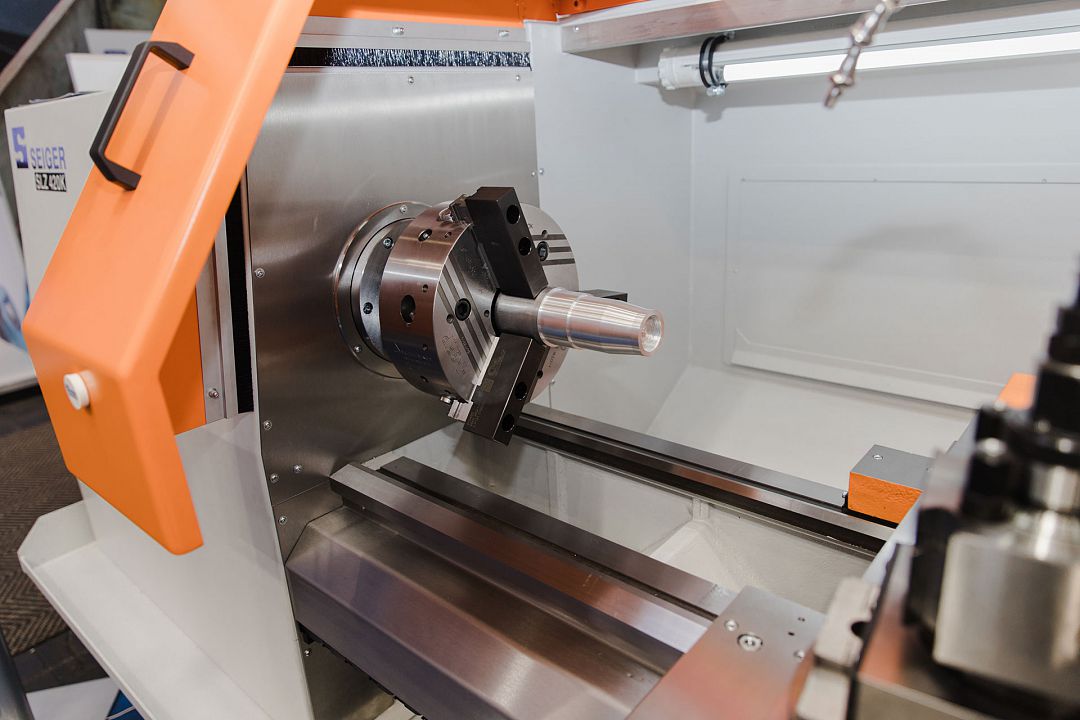

Stable headstock made of grey cast iron. 5 spindle bearings for a very smooth running. Large spindle bore 80mm.

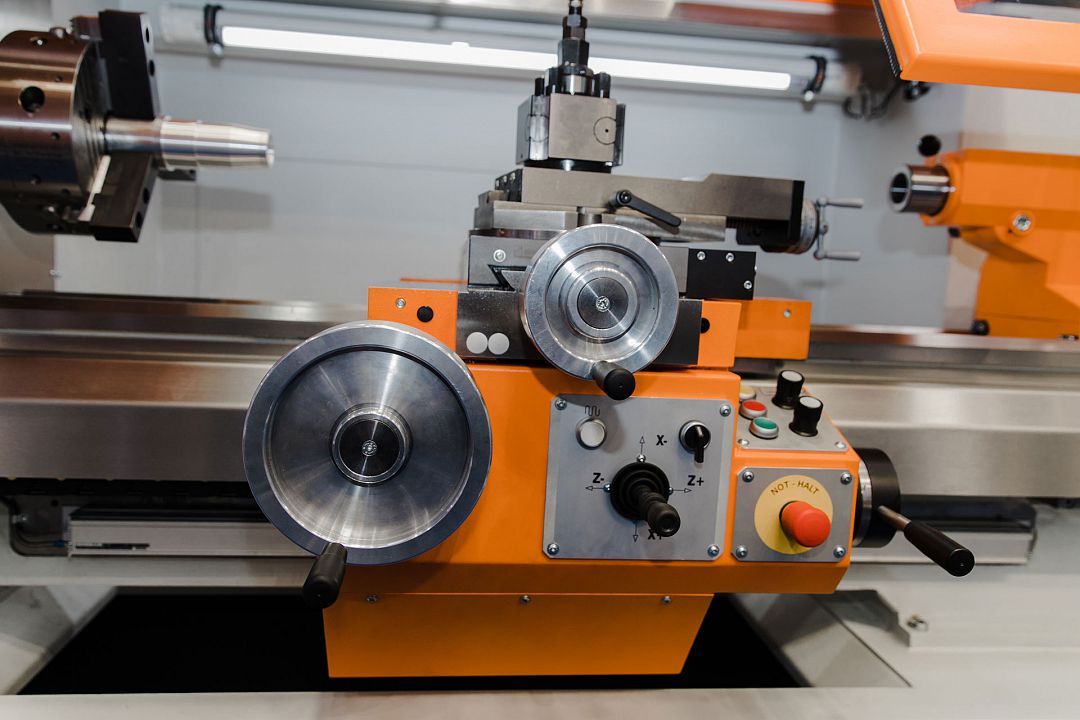

Support with mechanical handwheels for both axes

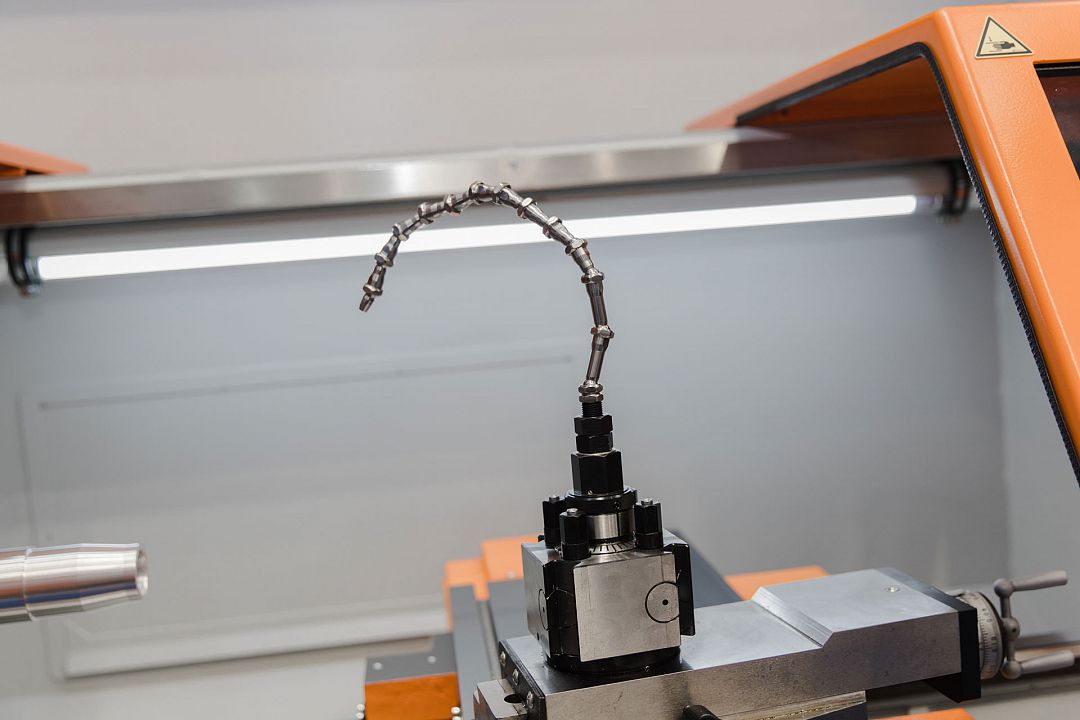

Upper support with steel tool holder Multifix as standard or options like Parat

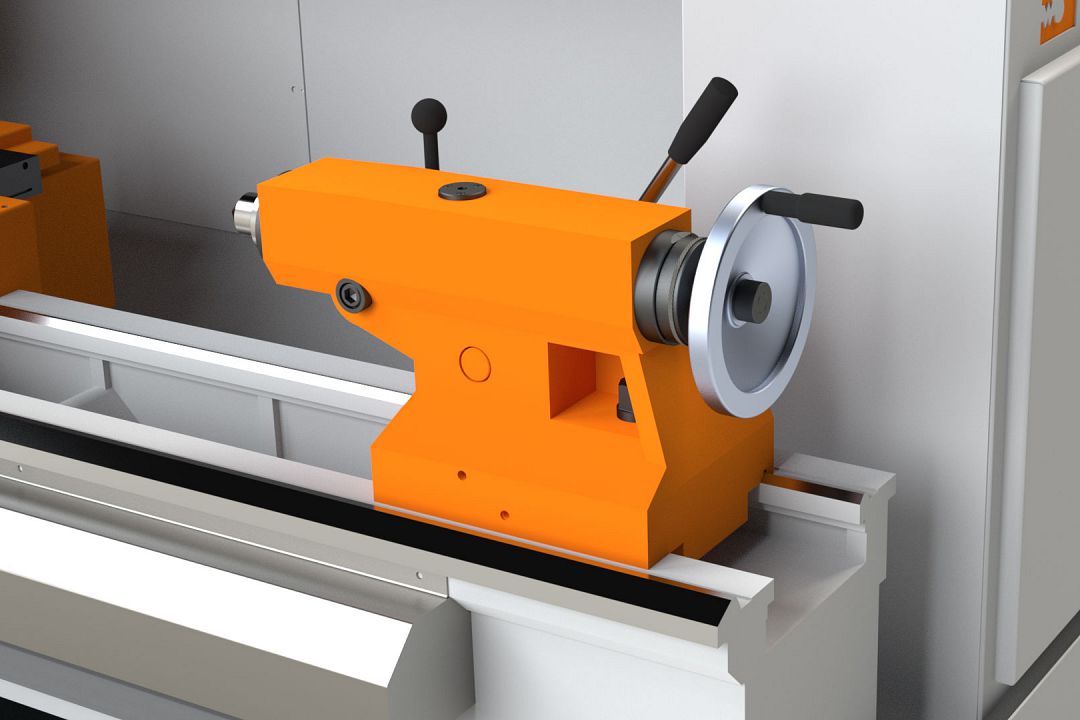

Tailstock quill d=70mm, large cantilever to the front for good accessibility

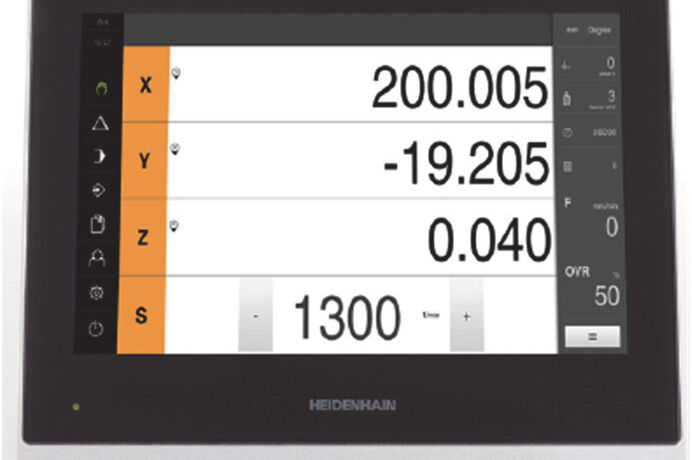

Digital display Heidenhain Positip 8016 with 12" touch screen for an optimal overview

Stable headstock made of grey cast iron. 5 spindle bearings for a very smooth running. Large spindle bore 80mm.

Support with mechanical handwheels for both axes

Upper support with steel tool holder Multifix as standard or options like Parat

Tailstock quill d=70mm, large cantilever to the front for good accessibility

Digital display Heidenhain Positip 8016 with 12" touch screen for an optimal overview

Specifications and performance

Specifications


SLZ 420K Einheit Wert
Swing over bed mm 430
Swing over cross slide mm 220
Bed width mm 350
Spindle head in accordance with DIN 55027 Gr. 6
Spindle bore Ø mm 80 / 93 (Option)
Spindle Ø in the front bearing mm 110 / 130 (Option)
Tailstock quill Ø mm 70
Tailstock stroke mm 150
Tailstock Morse taper MK 5
Center distance mm 1.000 / 1.500 / 2.000

Performance


SLZ 420K Einheit Wert
Main drive KW 11 / 20 (Option)
Speed range 1/min 1 – 3.000

Maße
Length mm 1.900 + Center distance
Width mm 1.500
Height mm 1.600
