SLZ 1200S

SEIGER cycle lathe: The top performer for heavy-duty cutting from Seiger

Find out more

SEIGER SLZ 1200S Drehmschine

SLZ 1200S

SEIGER cycle lathe: The top performer for heavy-duty cutting from Seiger

General information


  • Available with CNC or cycle control from Siemens or Heidenhain
  • Torsion-resistant box-type bed made of high-quality cast iron with hardened precisely ground slideways and glass scale on the X-axis
  • Bed width 900 mm, support guide at the front for the apron
  • Rack and pinion drive on the Z-axis
  • Direct position measurement in the Z-axis and X-axis with sealing air system
  • Electric tailstock drive with quill diameter 220 mm
  • Main drive with 70 kW and 2-speed gearbox, automatically switchable
  • Headstock with 3 bearing points, bearing inner diameter from 240 mm to 300 mm
  • Different paneling variants as part paneling or full paneling

Overview of features


Solid machine bed with 900 mm bed width as box-type bed
Solid machine bed with 900 mm bed width as box-type bed
Modular design of different headstocks and attachments
Modular design of different headstocks and attachments
Maximum cutting rate at 70 kW main drive
Maximum cutting rate at 70 kW main drive

Photos


Extraction channel mounted in the paneling, with movable carriages for connection to the support.
C-axis with hydraulically swiveling drive and high-precision angle measurement.
Solid tailstock with a quill diameter of 220 mm and bearing assembly in the quill.
Drilling tailstock hydraulic with special quill and drilling cycles, hydraulic clamping on the bed.
Different clamping means such as faceplate, here with Ø = 1,500 mm and long slide cheeks.

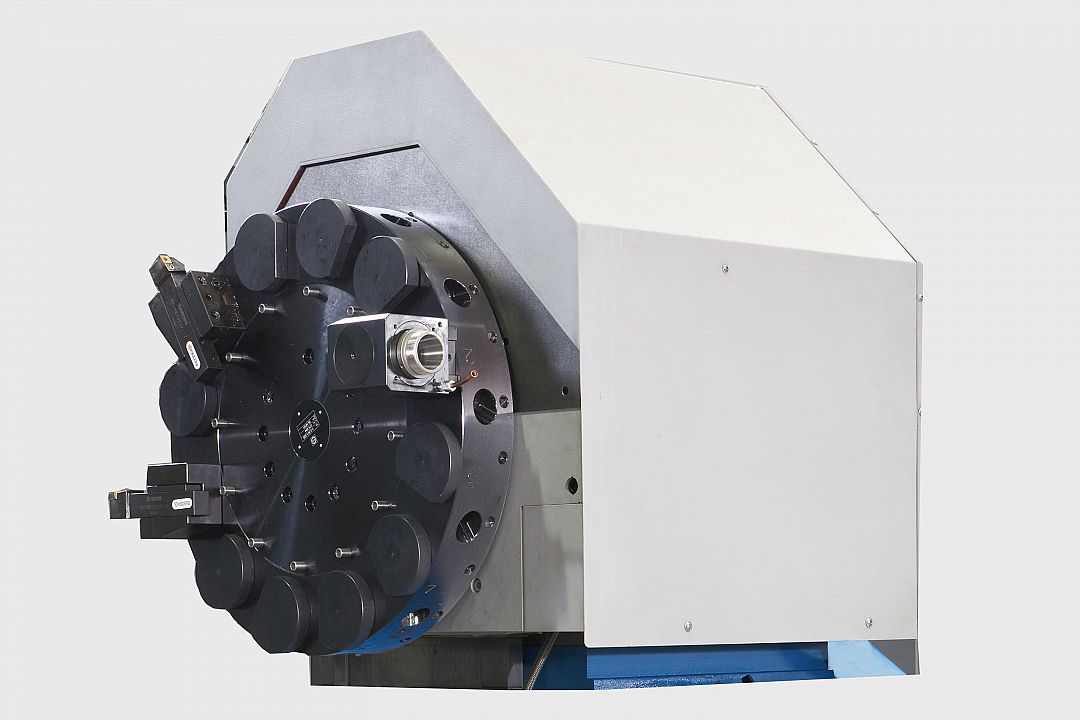

Disk turret with and without driven tools.

Extraction channel mounted in the paneling, with movable carriages for connection to the support.

C-axis with hydraulically swiveling drive and high-precision angle measurement.

Solid tailstock with a quill diameter of 220 mm and bearing assembly in the quill.

Drilling tailstock hydraulic with special quill and drilling cycles, hydraulic clamping on the bed.

Different clamping means such as faceplate, here with Ø = 1,500 mm and long slide cheeks.

Disk turret with and without driven tools.

Specifications and performance

Specifications


SLZ 1200S Unit Value
Swing over bed mm 1.250 – 1.600 (Option)
Swing over cross slideführung mm 850 – 1.200
Bed width mm 900
Spindle head in accordance with DIN 55027 Size 15
Spindle bore Ø mm 110
Spindle Ø in the front bearing mm 240
Tailstock quill Ø mm 220
Tailstock stroke mm 315
Tailstock Morse taper - Fixed tip
Center distance mm 3.000 - 20.000

Performance


SLZ 1200S Unit Value
Main drive KW 70
Speed range 1 / min 1 – 710

Dimensions
Length mm 5.500 + Center distance
Width mm 3.450
Height mm 2.780
