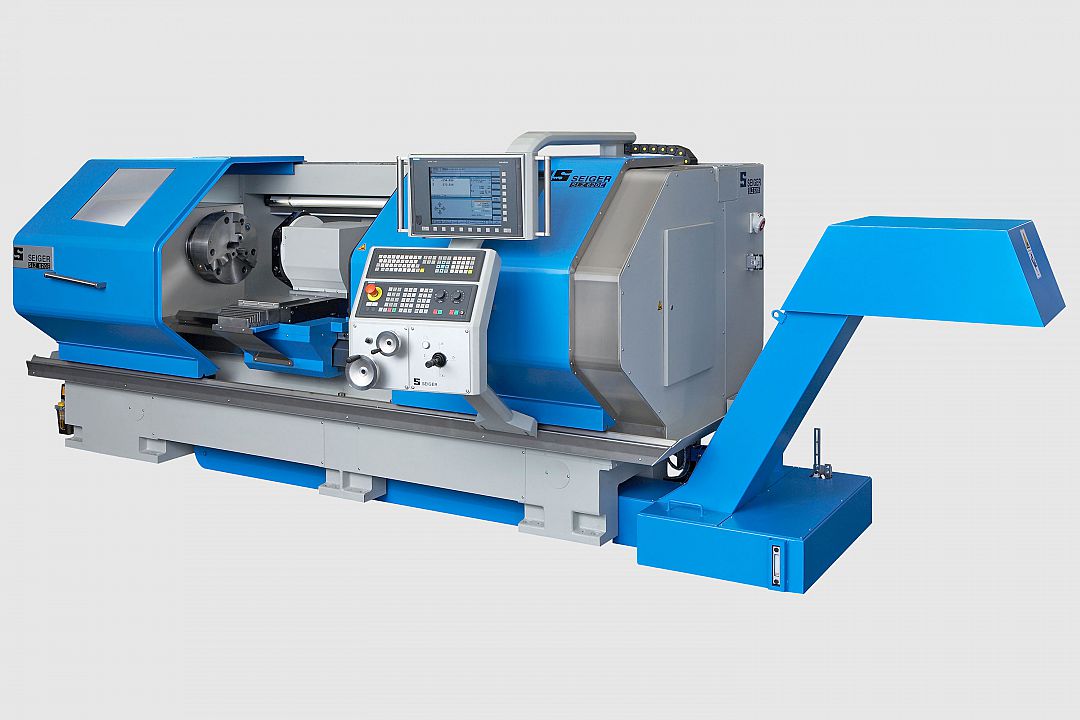

SLZ 620E

SEIGER cycle lathe: Powerful, ergonomic, sophisticated and efficient

SEIGER cycle lathe: Powerful, ergonomic, sophisticated and efficient

Send inquiry Download data sheet

Available with CNC or cycle control from Siemens or Heidenhain
Electrically switchable 2-speed gearbox with 30 kW main drive
Torsion-resistant bed made of high-quality cast iron with hardened precisely ground slideways, bed width 400 mm
Safety clutch in the Z-axis and X-axis
High degree of precision and rigidity of spindles thanks to precise spindle bearing, spindle bore Ø 93 mm as standard, Ø up to 160 mm as an option
Cross slide guide hardened and covered. Glass scale on the X-axis
Control panel assembly can be displaced freely.
Thermal separation between gearbox and main spindle

Machine with turret option, driven tools and tailstock side closed.

Automatic safety door drive available in an electric version as an option

Complete C-axis with swiveling drive and high-resolution measuring technology.

Tool measurement through motor-driven swivel arm and workpiece measurement available as an option.

SLZ 620E	Unit	Value
Swing over bed	mm	660
Swing over cross slide	mm	435
Bed width	mm	400
Spindle head in accordance with DIN 55027	Size	8
Spindle bore Ø	mm	93 / 160 (Option)
Spindle Ø in the front bearing	mm	130 / 200 (Option)
Tailstock quill Ø	mm	90
Tailstock stroke	mm	180
Tailstock Morse taper	MK	5
Center distance	mm	1.000 / 2.000 / 3.000
