SLZ 700E

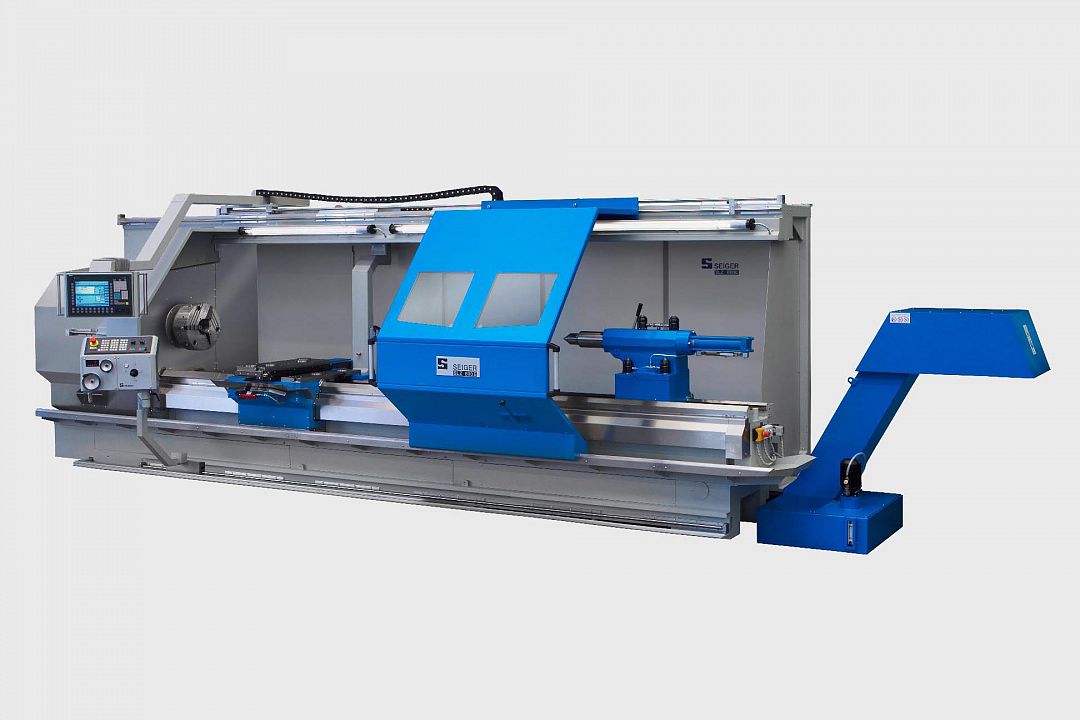

SEIGER cycle lathe: Good accessibility with best cutting rates and well thought-out paneling systems

Find out more

SEIGER SLZ 700E Drehmschine

SLZ 700E

SEIGER cycle lathe: Good accessibility with best cutting rates and well thought-out paneling systems

General information


  • Available with CNC or cycle control from Siemens or Heidenhain
  • Electrically switchable 2-speed gearbox with 30 kW main drive
  • Torsion-resistant bed made of high-quality cast iron with hardened precisely ground slideways, bed width 480 mm and glass scale on the X-axis
  • Safety clutch in the Z-axis and X-axis
  • High degree of precision and rigidity of spindles thanks to precise spindle bearing, spindle bore Ø 130 mm as standard, Ø up to 200 mm as an option
  • Thermal separation between gearbox and main spindle
  • Apron guide at the front as additional reinforcement when attaching turrets or units
  • Can be manufactured with a choice of compact paneling and integrated control cabinet or with stud frame paneling and separate cabinet
  • C-axis can be swiveled by its own drive via digital servo motor with gearbox as an option
  • Drive is by means of hardened and ground toothed wheel gear as an option
  • Milling cycles and drilling cycles as control extension as an option
  • Flange for lathe chucks at the rear for mounting a second chuck as an option

Overview of features


No energy chain in the cutting and water zones of the Z-axis
No energy chain in the cutting and water zones of the Z-axis
Large spindle bore and sturdy bearing Ø = 130 – 200 mm passage
Large spindle bore and sturdy bearing Ø = 130 – 200 mm passage
Additional guide for even more stability of the slide guide
Additional guide for even more stability of the slide guide

Photos


Parat 4-way turret in front of the turning center, Sauter 8-way disk turret VDI 40 mounted behind the turning center.
Additional guide at the front as a supporting guide for the support in the standard SLZ-700E version.
Machine in stud frame paneling for better accessibility and a larger workspace, following safety door coupled to the support, chuck protection hood separate, control cabinet as a separate cabinet
Support in special design with recessed zero-point clamping system for different machining systems.
Rests as steady or follow rest incl. operation of the rear quill from the front.

Parat 4-way turret in front of the turning center, Sauter 8-way disk turret VDI 40 mounted behind the turning center.

Additional guide at the front as a supporting guide for the support in the standard SLZ-700E version.

Machine in stud frame paneling for better accessibility and a larger workspace, following safety door coupled to the support, chuck protection hood separate, control cabinet as a separate cabinet

Support in special design with recessed zero-point clamping system for different machining systems.

Rests as steady or follow rest incl. operation of the rear quill from the front.

Specifications and performance

Specifications


SLZ 700E Unit Value
Swing over bed mm 730
Swing over cross slide mm 450
Bed width mm 480
Spindle head in accordance with DIN 55027 Size 11
Spindle bore Ø mm 130 / 200 (Option)
Spindle Ø in the front bearing mm 170 / 280 (Option)
Tailstock quill Ø mm 115
Tailstock stroke mm 225
Tailstock Morse taper MK 6
Center distance mm 1.500 – 8.000

Performance


SLZ 700E Unit Value
Main drive KW 30
Speed range 1 / min 1 – 2.200

Dimensions
Length mm 2.300 + Center distance
Width mm 2.600
Height mm 2.050
