SLZ 300K / SLZ 300SK

The first step into the digital world – the servo-conventional lathe from SEIGER: State-of-the-art decentralized drive technology with an ingenious operating concept makes the fast production of radii, threads, recesses etc. possible

Find out more

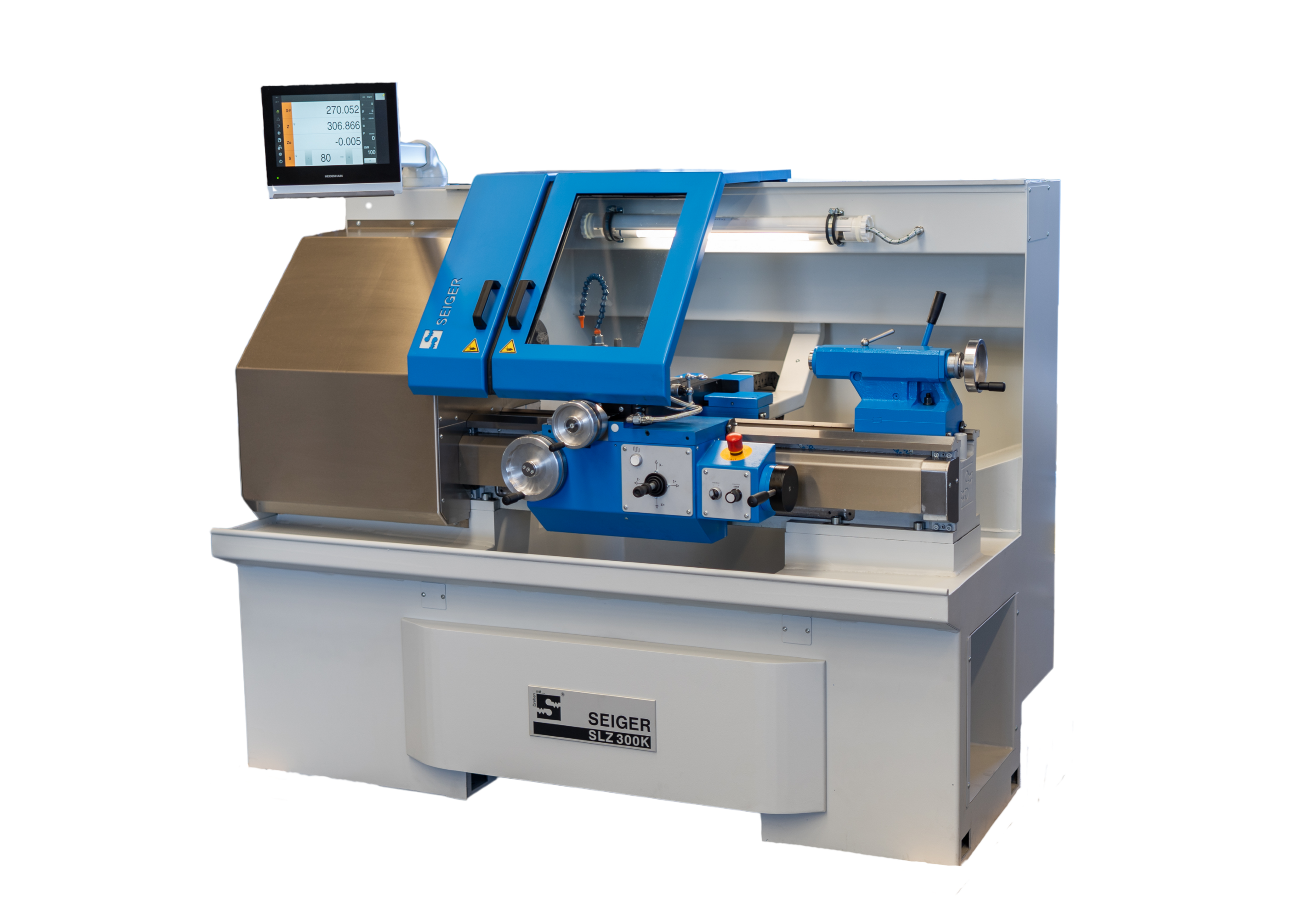

SEIGER SLZ 300K / SLZ 300SK Drehmschine

SLZ 300K / SLZ 300SK

The first step into the digital world – the servo-conventional lathe from SEIGER: State-of-the-art decentralized drive technology with an ingenious operating concept makes the fast production of radii, threads, recesses etc. possible

General information


  • Torsion-resistant bed made of high-quality cast iron with hardened precisely ground slideways. Bed width 240 mm
  • High degree of precision and rigidity of spindles thanks to precise spindle bearing, spindle bore Ø 40 mm as standard, Ø up to 55 mm as an option
  • Mechanical handwheels
  • Heidenhain 620 manual control
  • In accordance with DIN 8605 (toolmaker accuracy)
  • With the SEIGER SK series, you can map the entire contents of the training chain for qualification in machining professions for turning technology. A machine can be expanded depending on the year of apprenticeship.

1st expansion stage: setting stop, thread cutting

2nd expansion stage: manual cycles

3rd expansion stage: editing NC programs in DIN/ISO mode, execution of programs in program run mode

Overview of features


Good machine access and operation
Good machine access and operation
No energy chain in the cutting and water zones of the Z-axis
No energy chain in the cutting and water zones of the Z-axis
Stainless steel paneling in the permanent cutting zone
Stainless steel paneling in the permanent cutting zone

Photos

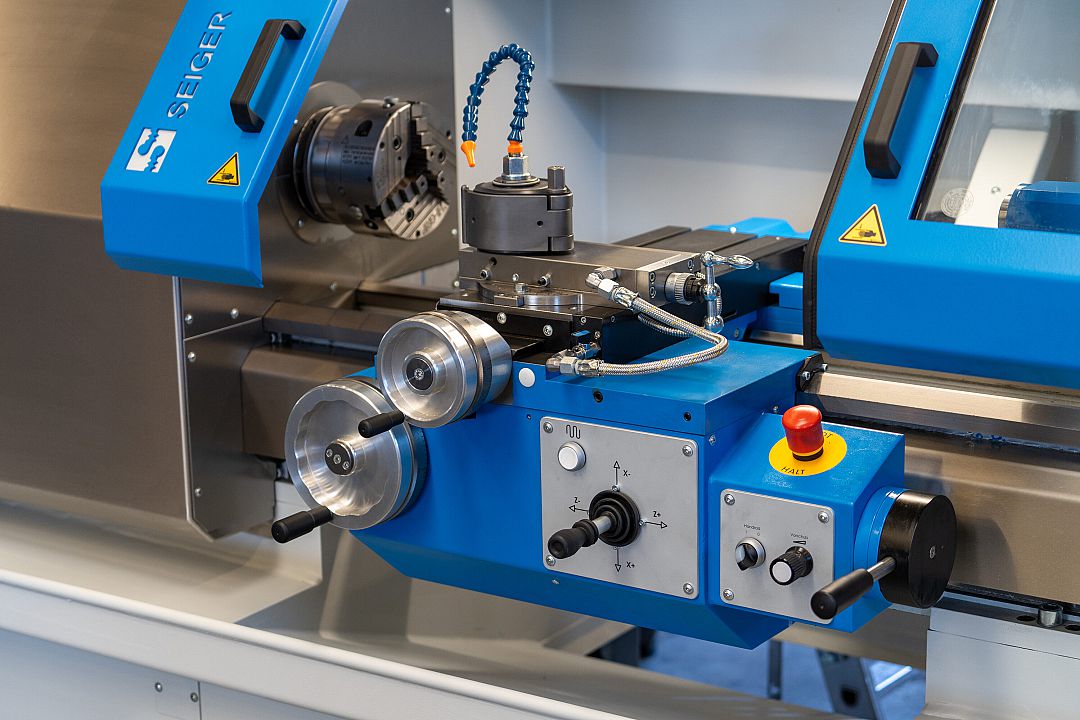

Support with mechanical handwheels for both axes

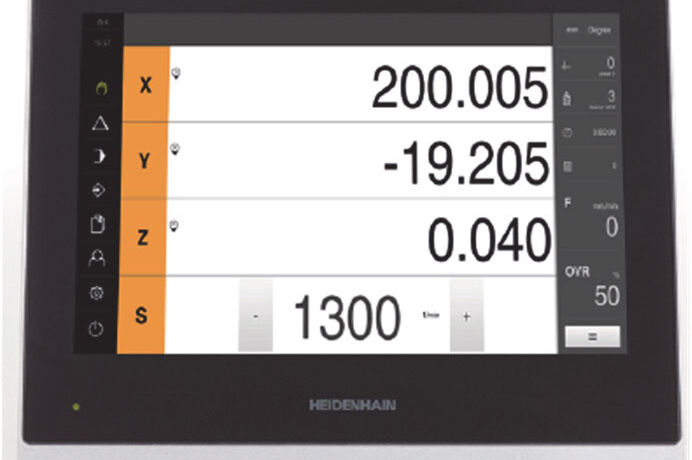

Heidenhain 620 manual control with 3 optional expansion stages. Robust industry-standard touchscreen
Tailstock quill D=50 mm, large projection to the front for good accessibility
Simplest handling of the expansion stages. Activation takes place through magnetic color-coded chips directly at the control panel

Support with mechanical handwheels for both axes

Heidenhain 620 manual control with 3 optional expansion stages. Robust industry-standard touchscreen

Tailstock quill D=50 mm, large projection to the front for good accessibility

Simplest handling of the expansion stages. Activation takes place through magnetic color-coded chips directly at the control panel

Specifications and performance

Specifications


SLZ 420K Einheit Wert
Swing over bed mm 300
Swing over cross slide mm 150
Bed width mm 240
Spindle head in accordance with DIN 55027 Gr. 5
Spindle bore Ø mm 55 / 55 (Option)
Spindle Ø in the front bearing mm 70 / 90 (Option)
Tailstock quill Ø mm 50
Tailstock stroke mm 125
Tailstock Morse taper MK 3
Center distance mm 750

Performance


SLZ 420K Einheit Wert
Main drive KW 11,5
Speed range 1/min 1 – 4.500

Maße
Length mm 2.000
Width mm 1.800
Height mm 1.850
